[ORCAD] LD1117A 3.3V 출력회로
보통 3.3V를 많이 쓰시진 않지만..간혹가다 몇종류의 센서나 블루투스 모듈 전원으로 필요할때가 있습니다.
이럴때 5V를 인가해버리면 해당 IC는 곧 운명할것입니다..ㅠㅠ
귀찮더라도 반드시 입력전압을 지켜서 사용하시기 바랍니다.

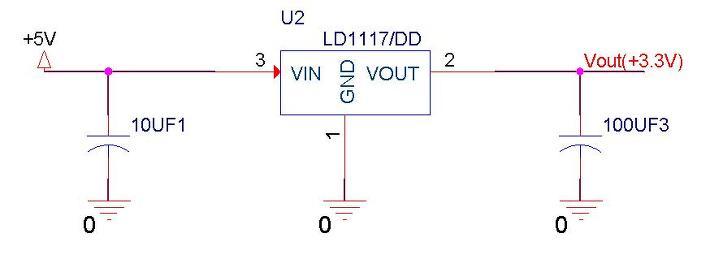

아래는 대표적으로 많이 사용하는 전원회로입니다.
Features
Output Current up to 1 A
Low Dropout Voltage ( 700mV at 1A Output Current )
Three Terminal Adjustable or Fixed 1.5V, 1.8V, 2.5V, 2.85V, 3.0V, 3.3V, 5.0V
2.85V Device for SCSI-II Active Terminator
0.04% Line Regulaion, 0.1% Load Regulation
Very Low Quiescent Current
Internal Current andTerminal Limit
Logic-Controlled Electronics Shutdown
Surface Mount Package SOT-223 & TO-263 (D2-Pack)
100% Thermal Limit Burn-In
Applications
Active SCSI Terminators
Portable/Plan Top/Notebook Computers
High Efficiency Linear Regulators
SMPS Post Regulators
Mother B/D Clock Supplies
Disk Drives
Battery Chargers
Ordering Information

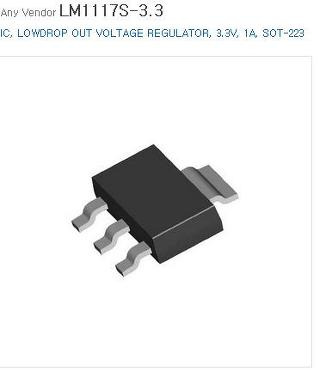

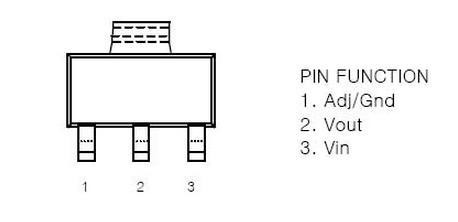

Package Type : SOT-223
Operating Temperature Range : 0℃ to +125℃
